The challenge

Multi-row variable sets (MRVS) in ServiceNow Catalog items are a useful tool for capturing multiple rows of information on a form without the need to create a new table.

Examples include:

  • capturing a list of users to add to a group.
  • a workplace incident form capturing who was hurt and what injuries they suffered.
  • a request for a new server capturing details for hard drives / storage volumes to be added.

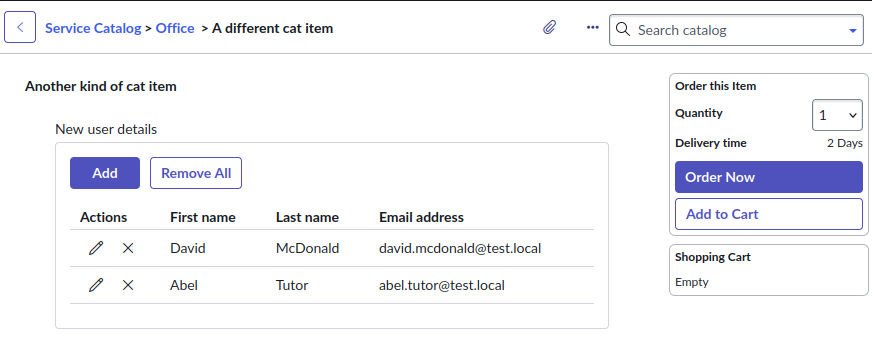

Sample multi row variable set

However, as great as they are, it can be difficult to report or filter on the data within an MRVS.

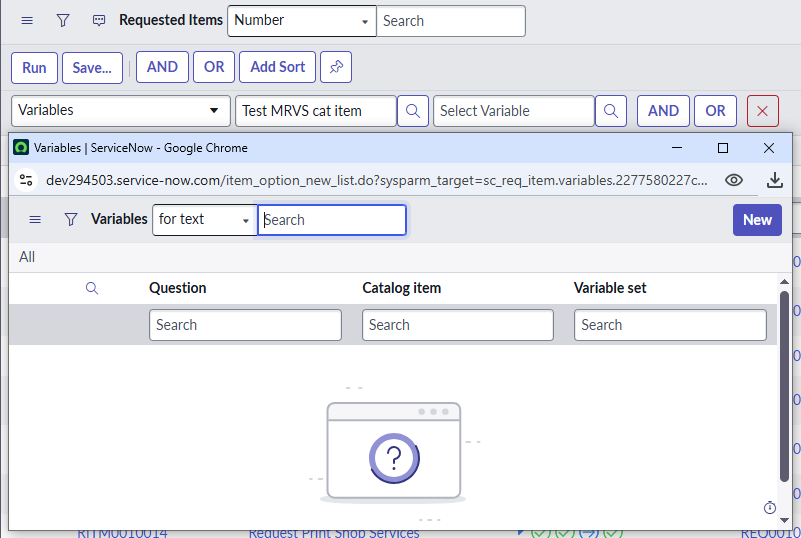

MRVS variables don't appear in the conditions of a list in the list of available variables.

Multi Row Variable Sets not selectable in conditions

The solution

A popular solution is using a database view.

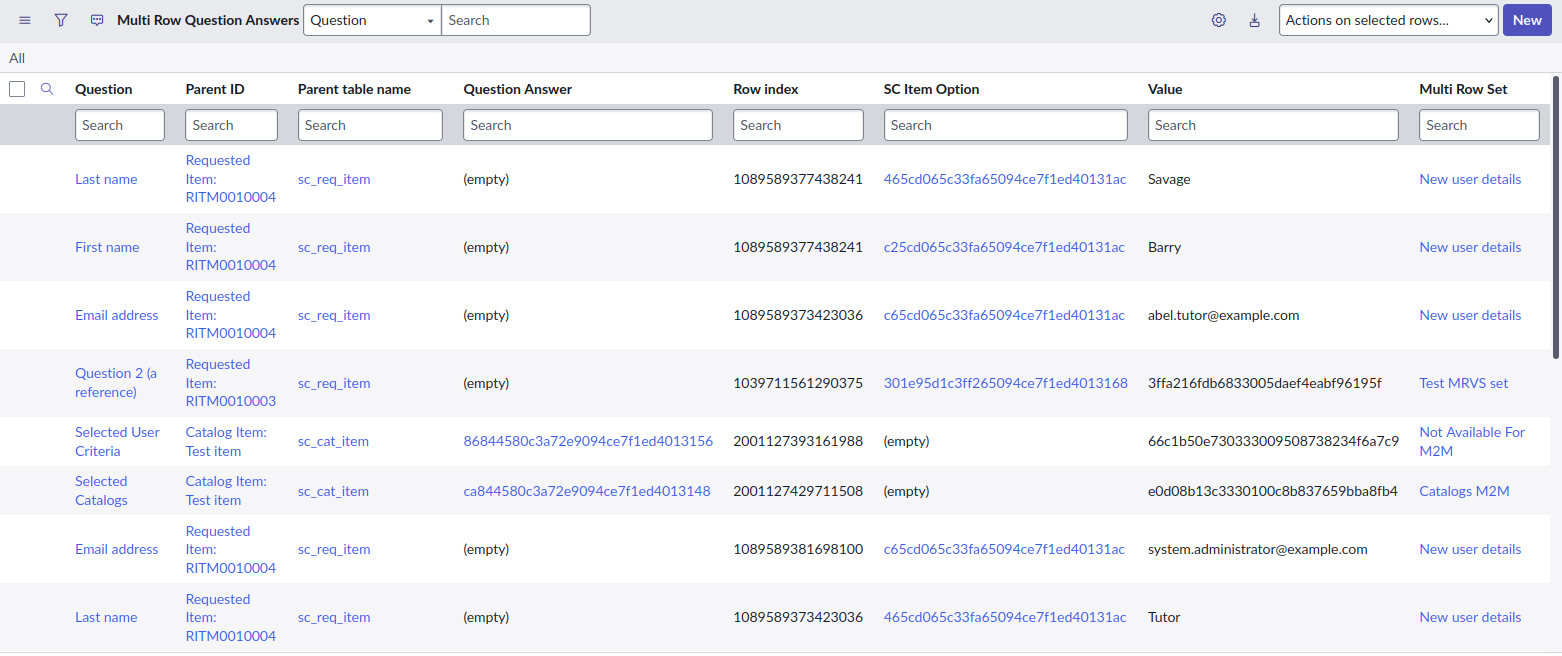

Answers to MRVS are stored in the table "Multi Row Question Answers" [sc_multi_row_question_answer]. You could report directly from this table, but it's not as human-friendly as you'd hope, and can be a pain to dot-walk through to the RITM [sc_req_item].

The multie row question answer table

To solve this, we'll create a database view to neatly join the Request Item table and Multi Row Question Answer table together.

  1. Navigate to System Definition > Database Views.
  2. Click on "New" and create a new database view.
    Name: u_sc_req_item_multi_var
    Label: Multi Row Variable Set
    Plural: Multi Row Variable Sets
    Description: Multi Row Variable Set answers joined to their Requested Item. For reporting and visibility.
  3. Right-click on the top bar and click on "Save". Some new "Related lists" should appear at the bottom.
  4. In the related list "View Tables", click on "New". Create and submit a new view table.
    Table: Multi Row Question Answer [sc_multi_row_question_answer]
    Variable prefix: mrqa
    Order: 100
    Where clause: (empty)
  5. In the related list "View Tables", click on "New". Create and submit a new view table.
    Table: Requested Item [sc_req_item]
    Variable prefix: sci
    Order: 200
    Where clause: mrqa_parent_id = sci_sys_id

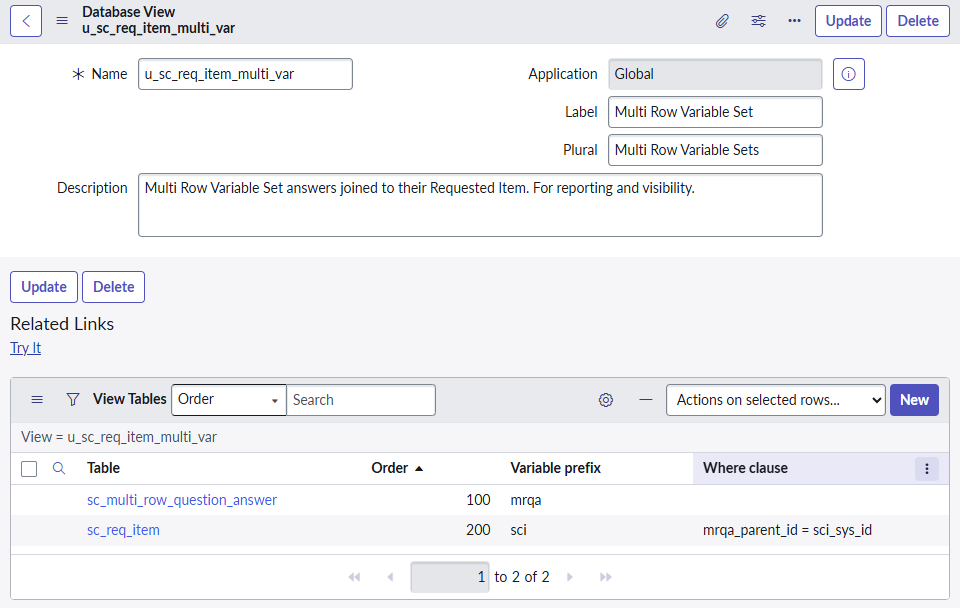

The new database view should now look like this.

New database view configuration

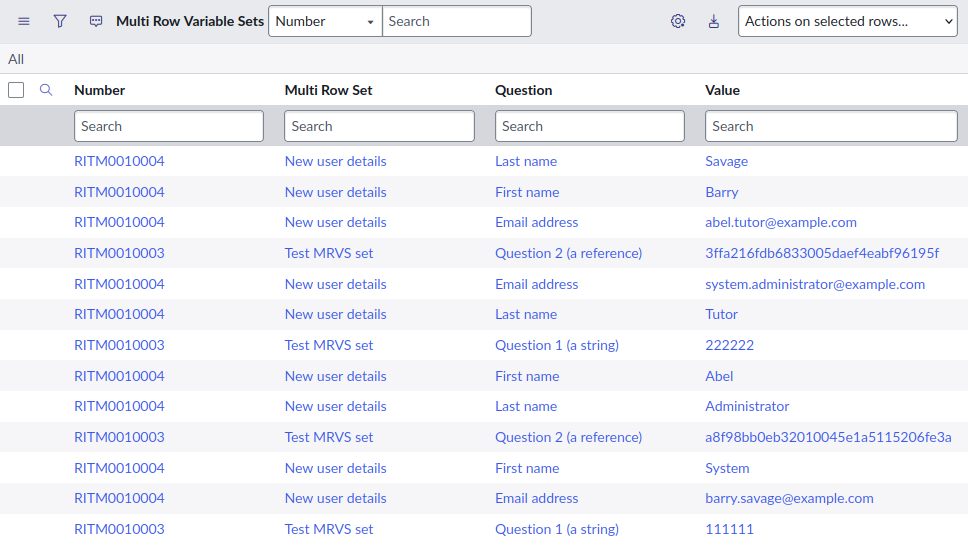

Here's what the MRVS data looks like when you open it, showing:

  • The RITM it belongs to
  • The question it was
  • The MRVS it's a part of
  • The value on the form

This is a lot easier to report from!

Using the new database view

Issue - reference variables

A caveat is that answers to reference fields in an MRVS will show as the sys_id of the referenced record, instead of the human-friendly display value of the selected record.

E.g. instead of the user's name "Abel Tutor", it'll show their sys_id "62826bf03710200044e0bfc8bcbe5df1".

As far as I know, there isn't a way to do this out-of-the-box.

Some people have said they've created workarounds by creating a new variable in the MRVS that is hidden, and will be auto-populated by the reference display value (e.g. the referenced user's name). It won't be visible on the form, but it will be able to be reported on.
